Bell Mouth Type Cable drum Pulley Lockable Cable Pulling Rollers

China Bell Mouth Type Cable drum Pulley Lockable Cable Pulling Rollers supplier
Bell Mouth Type Cable drum Pulley Lockable Cable Pulling Rollers supplier Bell Mouth Type Cable drum Pulley Lockable Cable Pulling Rollers supplier Bell Mouth Type Cable drum Pulley Lockable Cable Pulling Rollers supplier Bell Mouth Type Cable drum Pulley Lockable Cable Pulling Rollers supplier

Large Image :  Bell Mouth Type Cable drum Pulley Lockable Cable Pulling Rollers

Product Details:

Place of Origin: Ningbo,China
Brand Name: Newart
Certification: ISO
Model Number: SH80B-SH200B

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: Exported Wooden Cases
Delivery Time: 7-15days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 3000pcs/month
Detailed Product Description
Product Name: Cable Pulling Rollers Type: Belt Type, Hoisting Tackle
Application: Construction Works Material: Iron With Zinc Plated
Tube Diameter: 80-150mm Weight: 3.3-12kg
High Light:

conductor stringing blocks

,

wire stringing blocks

Bell Mouth Type Cable drum Pulley Lockable Cable Pulling Rollers

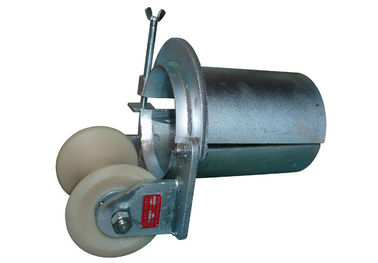

This cable ground roller, has the nylon and aluminum material two kinds, and suit to different tube diameters, from 80mm to 200mm, smooth surface, and light weight, the most important feature, it is lockable, when you use it, please nicely palce in the tube entrance at arbitrary angle. To meet more customized requirements, some client will demand the highly galvanzied frame, it will be the highest level of this roller, duwe to the zinc frame, it keeps more lift time, and durable, and better than spraying paint. So you should indicate it especially.



Application

Apply to cable extension



Feature

The roller can be placed in tube entrance at arbitrary angle and lockable zinc-coated steel surface with single nylon sheave



Technical Data

Item number Model

Tube Diameter

(mm)

Weight (kg)
21241 SH80B 80 3.3
21242 SH90B 90 3.5
21243 SH100B 100 3.8
21244 SH130B 130 6.0
21245 SH150B 150 7.2
21245A SH180B 180 10
21246 SH200B 200 12

Bell Mouth Type Cable drum Pulley Lockable Cable Pulling RollersBell Mouth Type Cable drum Pulley Lockable Cable Pulling RollersBell Mouth Type Cable drum Pulley Lockable Cable Pulling RollersBell Mouth Type Cable drum Pulley Lockable Cable Pulling Rollers
