6HP 4 Ton Cable Winch Puller With Gasoline / Diesel Engine Operated
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Cable Winch Puller | Power: | 4.04 |
|---|---|---|---|
| Rotational Speed: | 9 RPM | Traction Speed: | 4 M/MIN |
| Tractive Force: | 4 Ton | ||
| High Light: | hand operated wire rope winch,wire take up machine |
||
6HP 4 Ton Cable Winch Puller With Gasoline / Diesel Engine Operated
Cable Winch Puller INTENDED USE
Cable Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Cable Winch Puller Specifications:
| Item number | Model | Rotation | Gear | (RPM) | (M/MIN) | (T) | (KW) | (MM) | (KG) |
| direction | rotational | Traction | Tractive | Power | Outline | Weight | |||
| speed | speed | force | size | ||||||
| 9121 | JJQ-3Q | Ⅰ | 9 | 4 | 3 | 4.04 | 840x450x500 | 82 | |
| 6HP | corotation | Slow | |||||||
| Gasoline | |||||||||
| Ⅱ | 16 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
| engine | |||||||||
| Fast | |||||||||
| reversal | Reverse | No lifting | |||||||
| 09121A | JJC-30 | Ⅰ | 11.5 | 5 | 3 | 2.94 | 840x600x500 | 108 | |
| corotation | Slow | ||||||||
| 170F | |||||||||
| Diesel | |||||||||
| Ⅱ | 21 | 9 | 1.8 | ||||||
| engine | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 09121B | JJD-30 | Ⅰ | 8.5 | 4 | 3 | 3 | 770x600x460 | 108 | |
| corotation | Slow | ||||||||
| 3KW | |||||||||
| Ⅱ | 10.5 | 6.5 | 1.8 | ||||||
| Electromotor | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 9123 | JJQ-50 | Ⅰ | 6.5 | 4 | 5 | 6.61 | 1000x550x520 | 135 | |
| corotation | Slow | ||||||||
| 9HP | |||||||||
| Gasoline | |||||||||
| Ⅱ | 16 | 9 | 2.2 | ||||||
| engine | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 09123A | JJC-50 | Ⅰ | 8 | 4.5 | 5 | 4.41 | 1000x750x600 | 168 | |
| corotation | Slow | ||||||||
| 6.6HP | |||||||||
| Diesel | |||||||||
| Ⅱ | 19 | 11 | 2.3 | ||||||
| engine | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 09123B | JJD-50 | Ⅰ | 5.5 | 3.5 | 5 | 4 | 1000x850x520 | 160 | |
| corotation | Slow | ||||||||
| 4KW | |||||||||
| Ⅱ | 14 | 8 | 3 | ||||||
| Electromotor | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 9125 | JJQ-80 | Ⅰ | 5 | 3 | 8 | 9.6 | 1000x550x520 | 168 | |
| corotation | Slow | ||||||||
| 13HP | |||||||||
| Gasoline | |||||||||
| Ⅱ | 9 | 5 | 4.5 | ||||||
| engine | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 09125A | JJC-80 | Ⅰ | 7 | 4 | 8 | 7.86 | 1000x750x630 | 230 | |
| corotation | Slow | ||||||||
| 10.5HP | |||||||||
| Diesel | |||||||||
| Ⅱ | 13 | 7.5 | 4 | ||||||
| engine | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting |
Configuration:
Uses:suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:
Power can be configured according to used requirements.

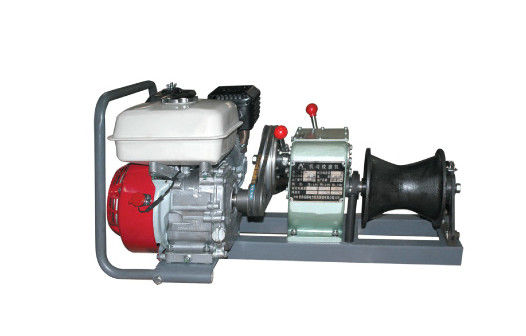

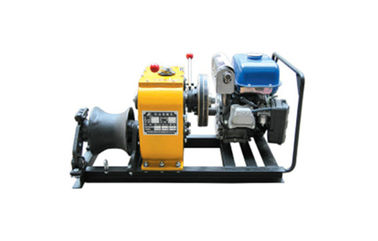

Cable Winch Puller Pictures
