1800 LB Mini Manual Hand Winch Hand Operated Brake Winch For Boat Trailer / Construction

Certification
Good quality Marine Hand Winch for sales
Good quality Marine Hand Winch for sales
Thanks very much for your perfect quality and VIP service, we will keep contract and do more business with you!

—— Mark From USA

Your DHW series winch is really very good,work perfectly ,thanks a lot.

—— Linda.M

Please find attached wire information for new order. Thank you again for your good service.

—— Igor Booklan

We received your goods last thursday and we are very pleased with the quality of your product.

—— Lionel Lobo

I'm Online Chat Now

1800 LB Mini Manual Hand Winch Hand Operated Brake Winch For Boat Trailer / Construction

China 1800 LB Mini Manual Hand Winch Hand Operated Brake Winch For Boat Trailer / Construction supplier
1800 LB Mini Manual Hand Winch Hand Operated Brake Winch For Boat Trailer / Construction supplier 1800 LB Mini Manual Hand Winch Hand Operated Brake Winch For Boat Trailer / Construction supplier

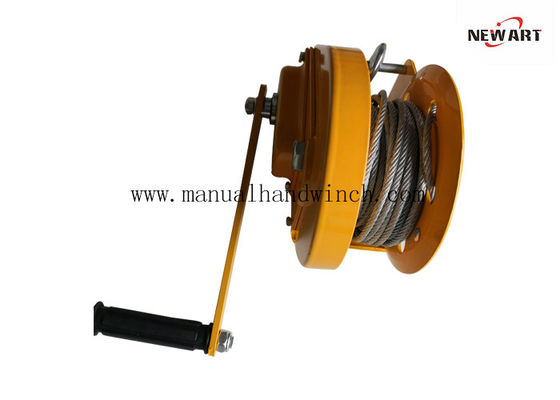

Large Image :  1800 LB Mini Manual Hand Winch Hand Operated Brake Winch For Boat Trailer / Construction

Product Details:

Place of Origin: China
Brand Name: Newart
Certification: ISO and CE & SGS
Model Number: LDE1800C

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: Get the newest price
Packaging Details: Exported Cartons and Pallets
Delivery Time: 25-35 days after payment
Payment Terms: T/T,L/C, Western Union, D/P, MoneyGram
Supply Ability: 9000pcs/month
Detailed Product Description
Capacity: 818kg(1800lbs) Application: ATV/UTV
Product Name: Walking Tractor Winch,manual Hand Winch Material: Steel
Color: Orange Yellow Weight: 3.8-10.2KG
Warranty: 1 Year Max. Capacity: 2640lbs(1200kg)
High Light:

manually operated winch

,

manual cable winch

1800 LB Mini Manual Cable Winch , Hand Operated Brake Winch For Boat Trailer / Construction



Self locking brake hand winch is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications. The automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load; there is no freewheeling making the hand winch extremely safe to operate.



How to use a winch

Even once you feel comfortable using your winch,you should perform a few checks each and every time you use it. Assess whether what you are about to tow is safely secured and ask all onlookers to back away. Then, inspect your winch before you use it. You will be looking for any frayed cables, dirt, mud, or any other obstruction that could cause a problem when you begin to operate the hand winch. If you buy a winch that features a shear pin, you will avoid a catastrophic break of the cable. The pin will break when the load becomes too heavy and lock the winch in place. Once you lighten the load or add a snatch box to take some pressure of the hand winch, you can replace the broken pin with a spare and resume your winching.



Specifications

Model LDE1800C
Safe working load (Lbs) 1800lb(818kg)
Test load (KN) 12.13
Drum-hub Diameter (mm) ¢60
Gear ratio 10:1
Hand length (mm) 320
N.W/G.W (kg) 8.1/9.0
Package size (cm) 35X20X23



As well,there is also 1200lbs and 2600lbs for choice if needed
