Wire Laying Construction Wire Rope Tools Steel Material 15 - 80KN Rated Load

China Wire Laying Construction Wire Rope Tools Steel Material 15 - 80KN Rated Load supplier
Wire Laying Construction Wire Rope Tools Steel Material 15 - 80KN Rated Load supplier Wire Laying Construction Wire Rope Tools Steel Material 15 - 80KN Rated Load supplier Wire Laying Construction Wire Rope Tools Steel Material 15 - 80KN Rated Load supplier Wire Laying Construction Wire Rope Tools Steel Material 15 - 80KN Rated Load supplier

Large Image :  Wire Laying Construction Wire Rope Tools Steel Material 15 - 80KN Rated Load

Product Details:

Place of Origin: Zhejiang, China
Certification: ISO
Model Number: SLW-1.5

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: Get Latest Price
Packaging Details: Plastic bag + Iron Pallet
Delivery Time: 30-35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Application: Connect, Power Construction Material: Steel
Warranty: One Year Rated Load: 15-80KN
Product Name: Conductor Mesh Socks Joint Size: 70-1120mm2
Feature: Easy Usage: Power Line Construction
High Light:

cable stripping tools

,

wire rope cutting tool

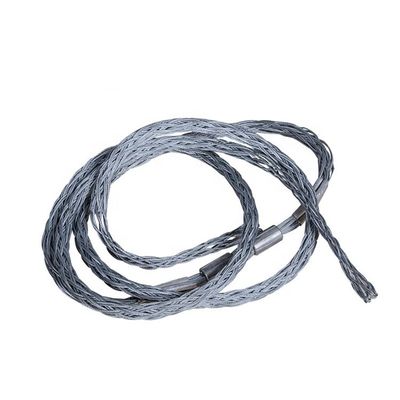

Wire Laying Construction Steel Cable Socks Wire Rope Pulling Grip Sock Wire Mesh Joints Conductor Mesh Socks Joint

Conductor Mesh Socks Joint

Feature 1. As well as advantages of light weight, large tensile load, not damage line, convenient to use and so on.It is also soft and easy to strench. 2.The most ideal tool for electric power construction. Applicatoin Hot sale cable pulling hoisting grip,cable sock is used for buried or pipe traction on ground power cables. It can pass all kinds of pay-off pulley. Use Method First press the opening of the net sleeve with the palm of your hand to open it, then start to wear the cable inward. The deeper the cable is worn, the greater the pulling force. The mesh body of the net sleeve is in the form of a grid, and the tension is tightened during construction. After the construction is completed, you only need to apply force in the opposite direction to remove the net sleeve. The net sleeve can be pulled by hand or lifting tool to achieve the function of wiring and protecting the cable.



Technical Data


Item number
Model
Applicable Conductor(ACSR)
Rated Load
(KN)
Single head
Double head
17161
17181
SLW(S)-1.5
ACSR70-95
15
17162
17182
SLW(S)-2
ACSR120-150
20
17163
17183
SLW(S)-2.5
ACSR185-240
25
17164
17184
SLW(S)-3
ACSR300-400
30
17165
17185
SLW(S)-4
ACSR500-600
40
17166
17186
SLW(S)-5
ACSR720
50
17167
17187
SLW(S)-7
ACSR900
70
17168
17188
SLW(S)-8
ACSR1000-1120
80
17169
17189
SLW(S)-12
ACSR1250
120



Introduction
Ningbo Donghuan Power Technology Co.,Ltd. is a research and development, production and sales: Stringing Block, Hoisting Tackle, Wire Grip, Reel Stand, Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors, Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric power construction. We are willing to make friends with customers, establish long-term cooperation, and create a brilliant future. We are always at your service, welcome to consult!
Company Profile
Wire Laying Construction Wire Rope Tools Steel Material 15 - 80KN Rated Load


FAQ

Services: 1. Our Quality Assurance Before packaging, we should control the quality of each process to avoid defects in the manufacturing process. 2. Fast delivery time There is sufficient stock, using advanced equipment and machinery to produce, to ensure delivery within 7-15 days. 3. Packaging Durable wooden boxes, wooden pallets or cartons, you can ensure that the ordered items will reach your perfect state. 4. Application It is widely used in overhead power line construction.
