Product Name: | Anti-twist Connector | Material: | Steel |
---|---|---|---|
Used: | Connecting | Connector: | Rigid Connector |
Rated Load: | 10KN-250KN | Feature: | Anti-twist |
Weight: | 0.2-3.0kg | Warranty: | One Year |
High Light: | power cable tools,wire rope cutting tool |
Anti-twist Connector
Feature
1. High strength, light weight, and good looking.
2. It smoothly can pass through the corners, pulley, tension machine, traction machine and other equipments.
Applicatoin Fixed Joint Anti-twist Connector is suitable to traction of connecting anti-twisting wire rope.

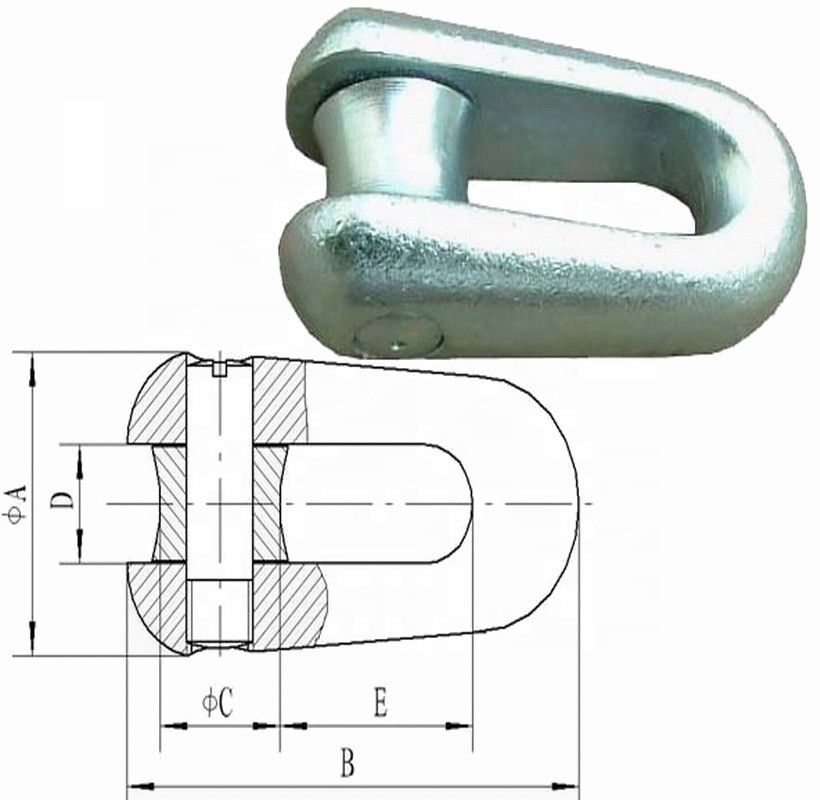

Item number | Model |
Rated Load (KN) |
Main Size(mm) |
Weight (mm) |
|||||
A | B | C | d | D | E | ||||
17111 | SLU-1 | 10 | 36 | 68 | 18 | 10 | 14 | 29 | 0.2 |
17112 | SLU-3 | 30 | 37 | 76 | 20 | 12 | 17 | 31 | 0.22 |
17113 | SLU-5 | 50 | 50 | 96 | 21 | 18 | 19 | 42 | 0.6 |
17114 | SLU-8 | 80 | 56 | 96 | 23 | 18 | 19 | 42 | 0.6 |
17115 | SLU-10 | 100 | 59 | 126 | 30 | 22 | 26 | 54 | 1.2 |
17116 | SLU-13 | 130 | 61 | 134 | 32 | 24 | 27 | 56 | 1.3 |
17117 | SLU-15 | 150 | 63 | 138 | 37 | 27 | 28 | 58 | 1.4 |
17117A | SLU-18 | 180 | 63 | 138 | 37 | 27 | 28 | 58 | 1.4 |
17118 | SLU-25 | 250 | 80 | 178 | 44 | 30 | 35 | 72 | 3.0 |
17118A | SLU-28 | 280 | 80 | 178 | 44 | 30 | 35 | 72 | 3.0 |
17119 | SLU32 | 320 | 85 | 186 | 42 | 30 | 38 | 80 | 3.9 |
