Punching Metal Sheet Punching Tools , Hydraulic Hole Punch Machine

China Punching Metal Sheet Punching Tools , Hydraulic Hole Punch Machine supplier
Punching Metal Sheet Punching Tools , Hydraulic Hole Punch Machine supplier Punching Metal Sheet Punching Tools , Hydraulic Hole Punch Machine supplier Punching Metal Sheet Punching Tools , Hydraulic Hole Punch Machine supplier Punching Metal Sheet Punching Tools , Hydraulic Hole Punch Machine supplier

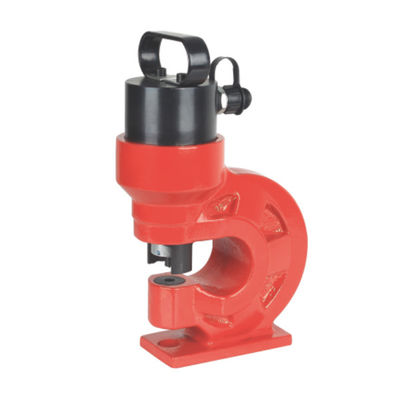

Large Image :  Punching Metal Sheet Punching Tools , Hydraulic Hole Punch Machine

Product Details:

Place of Origin: Ningbo Port
Brand Name: Newart
Certification: ISO9001
Model Number: CH-60

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export Carton
Delivery Time: 15days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Material: Forged Alloy Steel 20CrMnTi Application: Power Construction
Weight: 19-150KG Type: Hydraulic Punching Machine, Hydraulic Hole Puncher
Package: Box Product Name: Hydraulic Hole Punching Tools
Usage: Punching Warranty: 1 Year
High Light:

hydraulic hose crimping tool

,

hydraulic wire crimper

Punching Metal Sheet Punching Tools , Hydraulic Hole Punch Machine



Hydraulic Hole Punch Machine



Model CH-60 CH70 CH80 CH100 Hydraulic Punching Tools is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.



Hydraulic Hole Punch Machine Features



Operation speed of Hydraulic Hole Puncher is fast than electric drill. It only need a few seconds for punching and there is no burr after punching. With pressing mechanism design, punching precision is good. With the hydraulic pump as power, it can used in no power site. 1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range 2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies accoding to application 3. Punching Dies Customization is Available if samples and Drawings can be provided 4. Wooden case package: protect tools well



Hydraulic Hole Punch Machine Technical Data



Item number Model

Punching

force

(mm)

Punching

thickness

(mm

)

throat

diameter

(mm

)

Hight

(mm)

Weight

(kg

)

specification of

matching mold

(mm)

hydraulic pump
06243 CH-60

300

iron6

copper10

95 350 19

Φ10.5,Φ13.8,

Φ17,Φ20.5

CP-700/ZCB6-5-A3
06244 CH-70 350

iron10

copper12

110 360 35

Φ10.5,Φ13.8,

Φ17,Φ20.5

CP-700/ZCB6-5-A3
06248 CH-80

500

iron16

copper20

115 340 45

Φ16,Φ18,

Φ22,Φ25

ZCB6-5-AB
06249 CH-100 1000

iron18

copper20

135 400 150

Φ25,Φ28,

Φ32,Φ36

ZCB6-5-AB
