Multifunctional Copper Bus Bar Generatrix Hydraulic Bus Bar Machining Machine

China Multifunctional Copper Bus Bar Generatrix Hydraulic Bus Bar Machining Machine supplier
Multifunctional Copper Bus Bar Generatrix Hydraulic Bus Bar Machining Machine supplier Multifunctional Copper Bus Bar Generatrix Hydraulic Bus Bar Machining Machine supplier Multifunctional Copper Bus Bar Generatrix Hydraulic Bus Bar Machining Machine supplier Multifunctional Copper Bus Bar Generatrix Hydraulic Bus Bar Machining Machine supplier

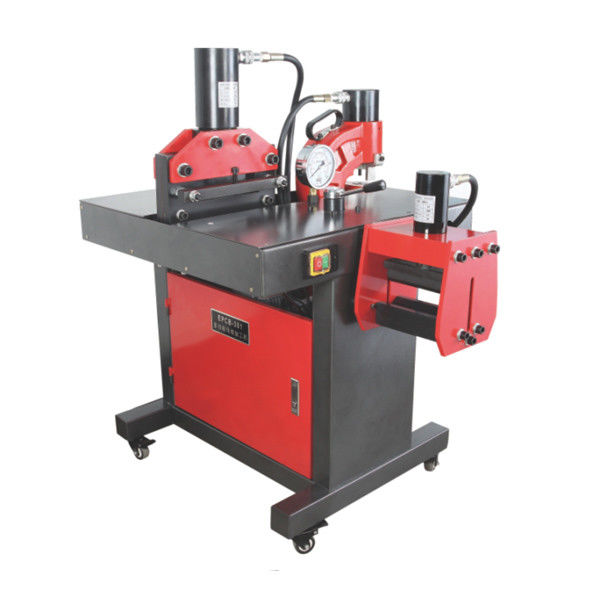

Large Image :  Multifunctional Copper Bus Bar Generatrix Hydraulic Bus Bar Machining Machine

Product Details:

Place of Origin: Ningbo,China
Brand Name: Newart
Certification: ISO
Model Number: EPCB-301 & EPCB-401

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Designed by parts to load into container
Delivery Time: 15days after Payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5pcs per two months
Contact Now
Detailed Product Description
Product Name: Hydraulic Bus Bar Machining Machine Application: Power Construction
Crimping Force:: 60T Stroke: 24mm
Weight: Approx.N.W.20kg Crimping Type: Hexagon Crimping
Type: Hydraulic Crimping Tools Package: Wooden Case
High Light:

hydraulic cable crimper

,

hydraulic wire crimper

Multifunctional Copper bus bar Generatrix Hydraulic Bus Bar Machining Machine



Multi-function Bus-bar Processing: Cutting, Punching, Bending(horizontal and erective), Crimping and Embossing, etc.



Quality Control



We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.



Our Values



1.Take First-Class Quality as Target and First-class Service.

2.Customer in Heart, Quality in Hand, Technology in the Lead.



Specification



Item number 06232 06231A 06231
Model EPCB-301 EPCB-401A EPCB-401
Function

with three functions,cutting,

punching and bending

punching, bending and crimping

with four functions,cutting,

punching and bending(horizontal

and erective)

Dimension of

work table

approx.690x690x730mm approx.690x690x730mm approx.690x690x730mm

Voltage single

phase

220V50HZ 220V50HZ 220V50HZ

Rating oil

pressure

700kg/cm² 700kg/cm² 700kg/cm ²
Bending force 170KN/200KN 170KN/200KN 270KN
Bending range 150x10mm max/200x12mm max 150x10mm max/200x12mm max 125x12.5mm max
Cutting force 200KN/300KN 200KN/300KN 200KN/300KN
Cutting rang 150x10mm max/200x12mm max 150x10mm max/200x12mm max 150x10mm max/200x12mm max
Punching force 300KN/350KN 300KN/350KN 300KN/350KN

Distance from hole

to sheet side

95x110mm max 95x110mm max 95x110mm
Punch rang

Φ10.5mmΦ13.8mm

Φ17mmΦ20.5mm

Φ10.5mmΦ13.8mm

Φ17mmΦ20.5mm

3/8"(Φ10.5mm),1/2"(Φ13.8mm),

5/8"(Φ17mm),3/4"(Φ20.5mm)

Package wooden case wooden case wooden case
