Gasoline Powered Tower Erection Tools Cable Winch Puller With Fast Traction Speed 5 M/MIN

China Gasoline Powered Tower Erection Tools Cable Winch Puller With Fast Traction Speed 5 M/MIN supplier
Gasoline Powered Tower Erection Tools Cable Winch Puller With Fast Traction Speed 5 M/MIN supplier Gasoline Powered Tower Erection Tools Cable Winch Puller With Fast Traction Speed 5 M/MIN supplier Gasoline Powered Tower Erection Tools Cable Winch Puller With Fast Traction Speed 5 M/MIN supplier Gasoline Powered Tower Erection Tools Cable Winch Puller With Fast Traction Speed 5 M/MIN supplier

Large Image :  Gasoline Powered Tower Erection Tools Cable Winch Puller With Fast Traction Speed 5 M/MIN

Product Details:

Place of Origin: Ningbo,China
Brand Name: Donghuan
Certification: ISO
Model Number: JJQ-30

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Exported Plywood Case
Delivery Time: 3-5 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Name: Cable Winch Puller Feature: Fast Traction Speed
Rotational Speed: 5 RPM Traction Speed: 5 M/MIN
Tractive Force: 3 T Power: 4.04
High Light:

metal ground anchors

,

gasoline powered winch

Gasoline Powered Cable Winch Puller With Fast Traction Speed 5 M/MIN



Cable Winch Puller Features



1. High versatility

2. Compactstructure

3. Smallvolume, lightweight, convenience in using and transferring

4. Driving stably

5. Very light noise

6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.

7. Adjustable lifting or pulling speed for different usage environment.





Cable Winch Puller Specifications:



Item number Model Rotation Gear (T) (M/MIN) (KW) (MM) (KG)
    direction   Tractive Traction Power Outline Weight
        force speed   size
9131 JJQ-30   SlowⅠ 3 5 4.04 900x400x430 94

6HP corotation SlowⅡ 2 7
    FastⅠ 0.9 16
Gasoline   FastⅡ 0.6 24
    Slow   4
engine
  reversal Fast No lifting 13
09131A JJC-3   SlowⅠ 3 5 2.9 1000x450x500 115
  corotation
5HP

    SlowⅡ 2 7
    FastⅠ 0.9 16
Diesel   FastⅡ 0.6 24
    Slow   4
engine reversal Fast No lifting 13
9135 JJQ-5B   FastⅠ 0.9 24 6.6 1100x525x600 138

9HP corotation

    FastⅡ 1.5 13
    SlowⅠ 2.5 8
Gasoline   SlowⅡ 5 4
    Slow   4
engine reversal Fast No lifting 18
09135A JJC-5B   FastⅠ 0.9 24 5.7 1000x498x600 148
  corotation
186F

    FastⅡ 1.5 13
    SlowⅠ 2.5 8
Diesel   SlowⅡ 5 4
    Slow   4
engine reversal Slow No lifting 18



Configuration:

Uses:suitable for the construction of the tower line,traction line,tight line operation,laying cable.

Explain:

Power can be configured according to used requirements.

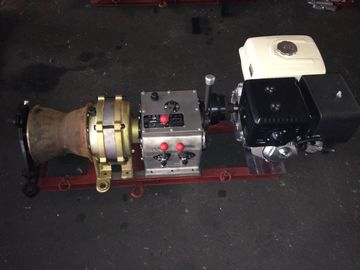

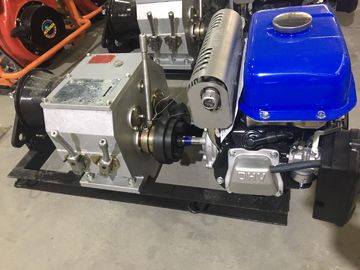

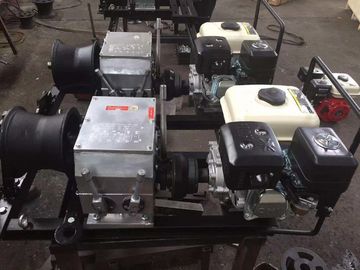

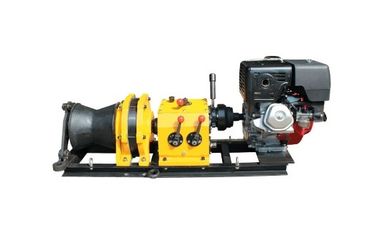

Cable Winch Puller Pictures



Gasoline Powered Tower Erection Tools Cable Winch Puller With Fast Traction Speed 5 M/MIN
