A Shape High Strength Tower Erection Tools Stringing Equipment Gin Pole

China A Shape High Strength Tower Erection Tools Stringing Equipment Gin Pole supplier
A Shape High Strength Tower Erection Tools Stringing Equipment Gin Pole supplier A Shape High Strength Tower Erection Tools Stringing Equipment Gin Pole supplier A Shape High Strength Tower Erection Tools Stringing Equipment Gin Pole supplier A Shape High Strength Tower Erection Tools Stringing Equipment Gin Pole supplier

Large Image :  A Shape High Strength Tower Erection Tools Stringing Equipment Gin Pole

Product Details:

Place of Origin: Ningbo,China
Brand Name: Newart
Certification: ISO
Model Number: 03361-03615

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Get the Lastest Price
Packaging Details: Export Cartons
Delivery Time: 5-7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Product Name: Aluminum Alloy A-shape Lattice Electric Gin Pole Model Number: GBR,LBR
Material: High Strength Aluminum Alloy Application: Assemble And Erect Tower And Pole In Transmission Line Construction
Type: Stringing Equipment Gin Pole Packing: Wooden Box
Usage: Power Transformer Weight: 10-75KG
Warranty: 1 Year
High Light:

piercing tool

,

gasoline powered winch

Aluminum Alloy A-shape Lattice Electric Gin Pole for Erection Power Tower Pole Erection Machine

Use and Characteristics

During used for transmission and distribution line engineering, sling tower material, positioning pulley set use.

Adopt single-arm style, free from direction restriction, use convenience.

The main material adopts right angle aluminum titanium alloy section, rivet joint makes, portable and durable.



Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.



Explain:

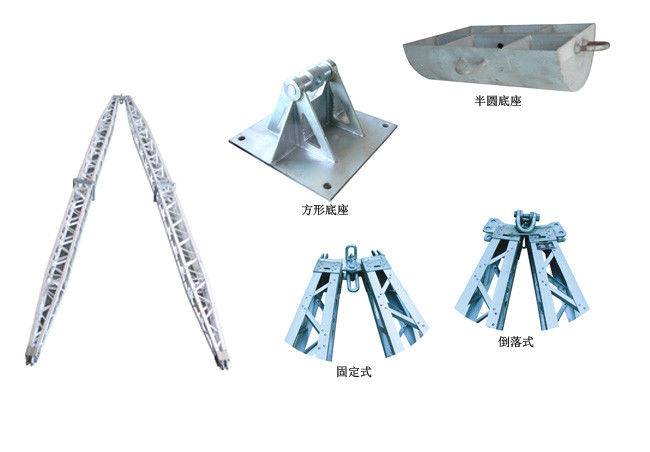

The head part of the Gin Poles is inverted,and The base part of the gin pole is semicircle or square.

And it should be noted when ordering.

03361-03445 is aluminum alloy material. 03611-03615 is manganese steel material.



Our Values

1, Take First-Class Quality as Target and First-class Service.

2, As Responsibility, To Succeed By Scientific Management.

3, Customer in Heart, Quality in Hand, Technology in the Lead.



Technical Data

Item number Model

Length

(m)

Base stroke

(m)

Allowable verticalload(kN)

Cross section

(mm)

Weight

(kg/m)

03361 LBR250-8 8 2.8 72 250 10.5
03362 LBR250-9 9 3.1 56
03363 LBR250-10 10 3.5 45
03364 LBR250-11 11 3.8 38
03365 LBR250-12 12 4.2 32
03366 LBR250-13 13 4.5 27
03371 LBR300-8 8 2.8 100 300 11
03372 LBR300-9 9 3.1 87
03373 LBR300-10 10 3.5 70
03374 LBR300-11 11 3.8 56
03375 LBR300-12 12 4.2 47
03376 LBR300-13 13 4.5 40
03377 LBR300-14 14 4.9 35
03378 LBR300-15 15 5.2 31
03379 LBR300-16 16 5.6 26
03381 LBR350-8 8 2.8 120 350 13.5
03382 LBR350-9 9 3.1 105
03383 LBR350-10 10 3.5 94
03384 LBR350-11 11 3.8 78
03385 LBR350-12 12 4.2 65
03386 LBR350-13 13 4.5 58
03387 LBR350-14 14 4.9 46
03388 LBR350-15 15 5.2 42
03389 LBR350-16 16 5.6 37
03391 LBR400-11A 11 3.8 98 400 14.5
03392 LBR400-12A 12 4.2 85
03393 LBR400-13A 13 4.5 75
03394 LBR400-14A 14 4.9 64
03395 LBR400-15A 15 5.2 56
03396 LBR400-16A 16 5.6 48
03397 LBR400-17A 17 5.9 44
03398 LBR400-18A 18 6.3 38
03401 LBR400-11B 11 3.8 147 400 16.5
03402 LBR400-12B 12 4.2 129
03403 LBR400-13B 13 4.5 113
03404 LBR400-14B 14 4.9 98
03405 LBR400-15B 15 5.2 86
03406 LBR400-16B 16 5.6 75
03407 LBR400-17B 17 5.9 69
03408 LBR400-18B 18 6.3 60
Item number Model

Length

(m)

Base stroke

(m)

Allowable verticalload(kN)

Cross section

(mm)

Weight

(kg/m)

03411 LBR500-13A 13 4.5 162 500 18
03412 LBR500-14A 14 4.9 148
03413 LBR500-15A 15 5.2 136
03414 LBR500-16A 16 5.6 125
03415 LBR500-17A 17 5.9 112
03416 LBR500-18A 18 6.3 98
03417 LBR500-19A 19 6.6 88
03418 LBR500-20A 20 6.9 81
03421 LBR500-13B 13 4.5 256 500 22
03422 LBR500-14B 14 4.9 234
03423 LBR500-15B 15 5.2 215
03424 LBR500-16B 16 5.6 196
03425 LBR500-17B 17 5.9 173
03426 LBR500-18B 18 6.3 151
03427 LBR500-19B 19 6.6 138
03428 LBR500-20B 20 6.9 127
03431 LBR600-15A 15 5.2 171 600 20
03432 LBR600-16A 16 5.6 160
03433 LBR600-17A 17 5.9 148
03434 LBR600-18A 18 6.3 138
03435 LBR600-19A 19 6.6 130
03436 LBR600-20A 20 6.9 120
03437 LBR600-21A 21 7.3 108
03438 LBR600-22A 22 7.6 96
03441 LBR600-15B 15 5.2 275 600 24
03442 LBR600-16B 16 5.6 252
03443 LBR600-17B 17 5.9 234
03444 LBR600-18B 18 6.3 219
03445 LBR600-19B 19 6.6 204
03446 LBR600-20B 20 6.9 186
03447 LBR600-21B 21 7.3 168
03448 LBR600-22B 22 7.6 150



A Shape High Strength Tower Erection Tools Stringing Equipment Gin PoleA Shape High Strength Tower Erection Tools Stringing Equipment Gin Pole
