100T Heavy Duty Crimp Cable Press Fit Tool / Split Type Hydraulic Crimping Pliers

China 100T Heavy Duty Crimp Cable Press Fit Tool / Split Type Hydraulic Crimping Pliers supplier
100T Heavy Duty Crimp Cable Press Fit Tool / Split Type Hydraulic Crimping Pliers supplier 100T Heavy Duty Crimp Cable Press Fit Tool / Split Type Hydraulic Crimping Pliers supplier 100T Heavy Duty Crimp Cable Press Fit Tool / Split Type Hydraulic Crimping Pliers supplier 100T Heavy Duty Crimp Cable Press Fit Tool / Split Type Hydraulic Crimping Pliers supplier

Large Image :  100T Heavy Duty Crimp Cable Press Fit Tool / Split Type Hydraulic Crimping Pliers

Product Details:

Place of Origin: China
Brand Name: Newart
Certification: ISO
Model Number: LD7630P

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Exported Wooden Case
Delivery Time: 15days after Payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 per month
Contact Now
Detailed Product Description
Product Name: Hydraulic Crimping Pliers Crimping Force: 60T
Application: Power Construction Stroke: 24mm
Weight: Approx.N.W.20kg Type: Hydraulic Crimping Tools
Crimping Type: Hexagon Crimping Package: Wooden Case
High Light:

hydraulic hose crimping tool

,

hydraulic wire crimper

YJD-1000 100T Heavy Duty Crimp Cable Press-fit Tool Split-type Hydraulic Crimping Pliers



Heavy Duty Crimp Cable Description

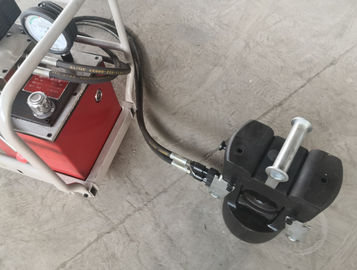

Split hydraulic crimping head can work with hydraulic pump

It is suit for crimping big size of lugs

It is suitable for outside and inside project of the distributor,it is the special tools for all kinds if connecting and building over head cable



Heavy Duty Crimp Cable Feature



1. It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the connecting and building over head cable.

2. It pressed tightly on 10kv-500kv high voltage cable casing pipe, clips nared ends and hexagon shape.

3. The oil pipe coipler fitted with PT 3/8'' thread.

4.To be worked with pedal pump, manual pump and electric driven hydraulic pump.



Heavy Duty Crimp Cable Technical Data



Item number 16103 16103A 16104 16105 16106
Model YJD-600 YJD-1000 YJD-1250 YJD-2000 YJD-3000

Crimping

force

60T 100T 125T 200T 300T

Crimping

range

14-55mm 14-76mm 14-76mm 14-90mm 14-100mm
type hexagon crimping hexagon crimping
Stroke 24mm 24mm 35mm 35mm

Heigth

approx.370mm approx.480mm

Weight

(KG)

approx.N.W20KG

G.W30KG

approx.N.W30KG

G.W40KG

approx.N.W50KG

G.W60KG

approx.N.W85KG

G.W95KG

approx.N.W120KG

G.W130KG

Package wooden case wooden case



Details



100T Heavy Duty Crimp Cable Press Fit Tool / Split Type Hydraulic Crimping Pliers100T Heavy Duty Crimp Cable Press Fit Tool / Split Type Hydraulic Crimping Pliers

100T Heavy Duty Crimp Cable Press Fit Tool / Split Type Hydraulic Crimping Pliers
